> Welding hinge

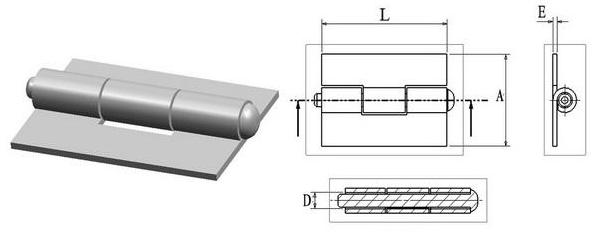

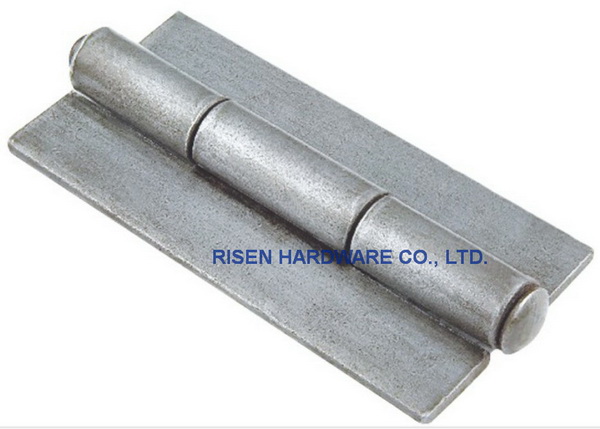

The heavy duty welding hinge BH608 Information & Specifications:
| SIZE(mm) | L(mm) | A(mm) | D(mm) | E(mm) |
| 80X50 | 80 | 50 | 10 | 4 |
| 100X58 | 100 | 58 | 10 | 4 |
| 120X58 | 120 | 58 | 10 | 4 |
| 150X58 | 150 | 58 | 10 | 4 |
1.Size: 80X50X3MM, 100X58X4MM,120X58X4MM,150X58X4MM.
2. It is very flexible,as the hinge are covered with anticorrosive oil.
3. The material of the hinge and hinge barrel is mild steel, the finishing is self color, zinc plated finishing is available.
4. We designed this welding hinge for doors with hinge radial loads and door with closers.
5. Usually we quote this hinge by one piece, but normally it should be use 2 piece(one pair) for each door.
6. We can produce according to customer's size.
7. The packing: inner box, carton, then pallet.
| MOQ | 3000PCS |
| DELIVERY TIME | 30 DAYS |
| PAYMENT TERMS | TT 30% IN ADVANCE, BALANCE TO BE REMITTED BEFORE SHIPMENT |
